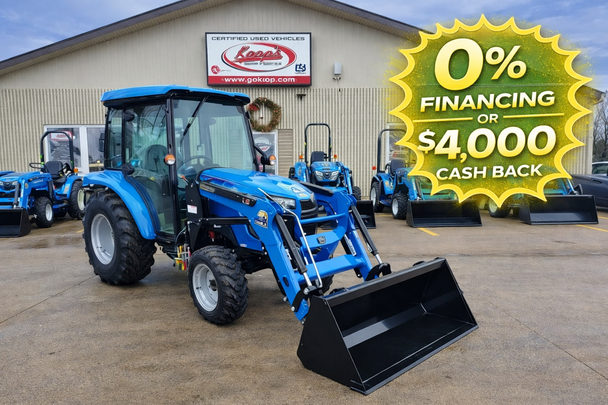

LS Tractor MT226HEC - 24.6HP Yanmar Diesel with Heat/AC & Front Loader w/ lift capacity of 1,965lbs

MT226HEC - SPECS

 LOADER LIFT CAPACITY 1,965 lbs.

 HITCH LIFT 1,433 lbs.

 ENGINE HP 24.4 HP

 PTO HP 19 HP

ENGINE

Type: 3 Cylinder, Liquid-cooled, Diesel, NA, DI
Model (Tier 4): YANMAR
Engine HP (Gross): 24.4
PTO HP: 19
Rated Speed (RPM): 2,400
Displacement (cu. in): 100.2
Fuel Tank Capacity (gal): 11.4
Alternator (V-A): 12V – 55 Amps

DRIVE TRAIN

Transmission Type: HST
No. of Speed: 3 Ranges
Brakes: Wet, Multi-disc
Steering: Hydrostatic Power Steering

PTO

Type: Independent
Rear, rpm: 540 (Standard)

HYDRAULIC SYSTEM

Control System: Position
Implement pump (gpm): 6.1
Steering pump (gpm): 4.6
Total flow (gpm): 10.7
Category, 3 pt hitch: CAT I
Hitch Lift capacity, lbs (Hitch end): 1,433
Remote Valves: 1 Pair

DIMENSION

Overall length (Frame to Link, in.): 125
Overall width with tires (in.): 66
Wheelbase (in.): 69
Height to top (in.): 90

TIRE SIZE

Ag Front / Rear: 7 – 14 / 11.2 – 24
IND Front / Rear: 27X8.50-15 / 43X16.00-20
VT Front / Rear: 27X8.50-15 / 43X16.00-20
Turf Front / Rear: 25X8.50-14 / 41X14.00-20

WEIGHT

Total weight without ballast (lbs.): 3,609
