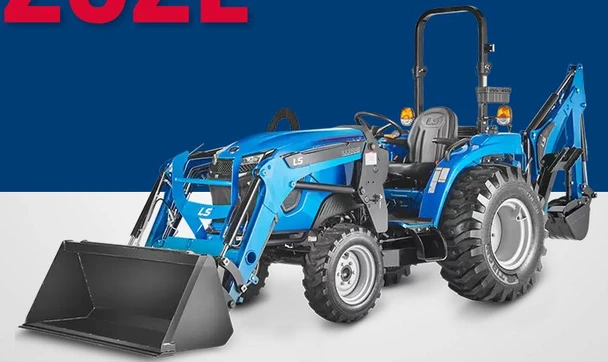

LS Tractor MT226HE (25HP) w/ Loader and backhoe (PRE-Order)

MT226 HE Specs

 LOADER LIFT CAPACITY 1,965 lb

HITCH LIFT 1,808 lbs.

 ENGINE HP 24.6 HP

PTO HP 17.1 HP

ENGINE

Type: 3 Cylinder, Liquid-cooled, Diesel, NA, IDI

Model (Tier 4): MHI

Engine HP (Gross): 24.6

PTO HP: 17.1

Rated Speed (RPM): 2,500

Displacement (cu. in): 80.4

Fuel Tank Capacity (gal): 10.6

Alternator (V-A): 12V – 50 Amps

DRIVE TRAIN

Transmission Type: HST

No. of Speed: 3 Ranges

Brakes: Wet, Multi-disc

Steering: Hydrostatic Power Steering

PTO

Type: Independent

Rear, rpm: 540 (Standard)

HYDRAULIC SYSTEM

Control System: Position

Implement pump (gpm): 7.1

Steering pump (gpm): 4.6

Total flow (gpm): 11.7

Category, 3 pt hitch: CAT I

DIMENSIONS

Overall length (Frame to Link, in.): 119

Overall width with tires (in.): 66

Wheelbase (in.): 66

Height to top (in.): 95

TIRE SIZE

Ag Front / Rear: 7 – 14 / 11.2 – 24

IND Front / Rear: 27X8.50-15 / 43X16.00-20

VT Front / Rear: 27X8.50-15 / 43X16.00-20

Turf Front / Rear: 25X8.50-14 / 41X14.00-20

WEIGHT

Total weight without ballast (lbs.): 3,007
